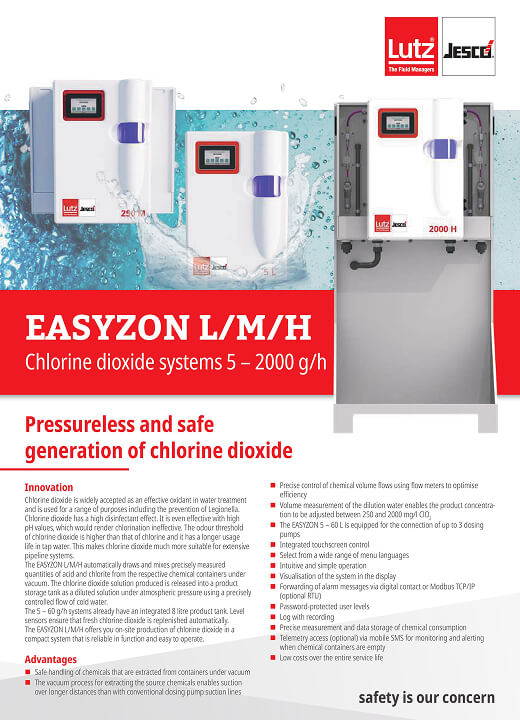

Chlorine dioxide generation systems EASYZON L/M/H Lutz-Jesco

EASYZON L/M/H automatically feeds and mixes precisely measured quantities of acid and chloride from the corresponding chemical containers under vacuum. The resulting chlorine dioxide solution is discharged into the product storage tank as a diluted solution at atmospheric pressure by means of a precisely controlled flow of cold water. Systems with a capacity of 5 to 40 g/h already have an integrated 8.5 l product tank. Level sensors ensure automatic replenishment of fresh chlorine dioxide. EASYZON L/M/H offers you on-site chlorine dioxide production with a compact system that is reliable and easy to operate.

Lutz-Jesco

Place your order at AQUAANALYTIC, Dubai.
We will quickly deliver your order to any country.

Chlorine dioxide production systems play a crucial role in water treatment and disinfection. Chlorine dioxide has a high disinfecting effect. Chlorine dioxide is widely recognized as an effective oxidant in water treatment and is used for a variety of purposes, including the prevention of Legionnaires’ disease. It is significantly more effective than chlorine and does not form hazardous by-products. Equipped with advanced control technology, our systems enable the precise dosing of chlorine dioxide, optimize the disinfection process and thus contribute to a clean and safe water supply. Depending on the system’s performance and the required level of disinfection, the systems can use either diluted or concentrated solutions.

Chlorine dioxide generation systems EASYZON L/M/H Lutz-Jesco

Chlorine dioxide generation systems EASYZON L/M/H Lutz-Jesco

  • Safe handling of chemicals that are extracted from containers under vacuum
  • The vacuum extraction process for raw chemicals allows suction over longer distances than with conventional suction lines with metering pumps
  • Precise control of chemical flow rates using flow meters for optimum efficiency
  • Measurement of the water volume for dilution allows the product concentration to be adjusted within a range of 250 to 2000 mg/l ClO₂
  • Connection of up to 3 metering pumps
  • Control unit with display of operating parameters
  • Password-protected user interface
  • Real-time error log
  • Precise measurement and storage of chemical consumption data
  • Access to telemetry (optional) via mobile SMS for monitoring and alerting of empty chemical containers
  • Low costs throughout the entire service life.
