E-Cell Electrodeionization (EDI) Systems by Veolia

E-Cell EDI systems are pre-engineered and readily available with 1 — 12 E-Cell MK-5 EDI Stacks or 16-20 E-Cell MK-9 EDI Stacks. Drawing on extensive EDI expertise and proven engineering practices, these systems represent years of refinement in design and construction. E-Cell EDI systems offer streamlined project implementation for both EDI newcomers and those seeking to benefit from Veolia’s manufacturing excellence.

Veolia

Place your order at AQUAANALYTIC, Dubai.
We will quickly deliver your order to any country.

While built upon four foundational designs, E-Cell EDI systems offer customizable configurations by adjusting stack quantities to match specific capacity requirements. Flow rates can be fine-tuned for each stack to achieve desired water quality parameters, as calculated through Winflows EDI projection software. Detailed specifications for individual stacks are available on the E-Cell Electrodeionization (EDI) Stacks page.

All systems offer flexibility for enhancement by upgrading from E-Cell MK-5 EDI stacks to E-Cell MK-9 EDI stacks, enabling a substantial 60% increase in nominal flow capacity.

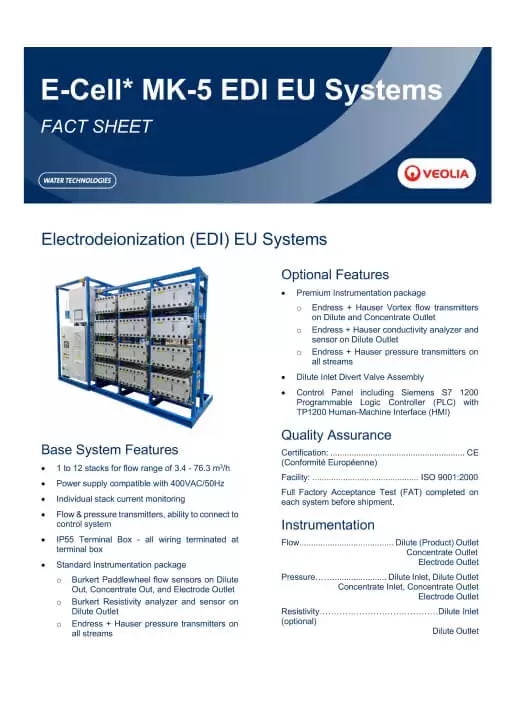

Electrodeionization (EDI) EU Systems

E-Cell Electrodeionization (EDI) Systems by Veolia Suez

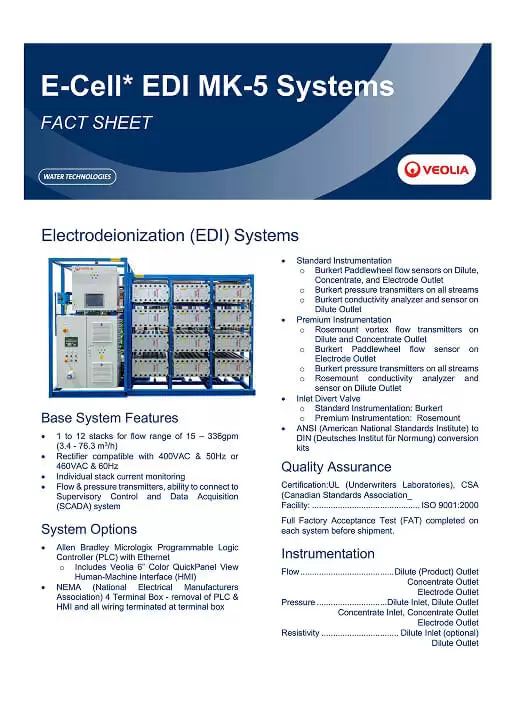

E-Cell Electrodeionization (EDI) Systems by Veolia

Type of StackMK-5MK-5MK-5MK-5
Number of Stacks1–23–45–810–12
Nominal Product Flow10 m³/h
(44 gpm)
20 m³/h
(88 gpm)
40 m³/h
(176 gpm)
60 m³/h
(264 gpm)
Product Flow Range3.4–12.7 m³/h
(15–56 gpm)
10.2–25.4 m³/h
(45–112 gpm)
17.0–50.9 m³/h
(75–224 gpm)
34.0–76.3 m³/h
(150–336 gpm)


E-Cell Electrodeionization (EDI) systems include the full complement of equipment needed for a fast and efficient installation, including:

  • Power panel with DC drive
  • Individual stack current monitoring
  • Instrumentation packages including flow, resistivity/conductivity, and pressure transmitters
  • Programmable logic controller (PLC)
  • Human-machine-interface (HMI)
  • Optional feed water divert valve and programming
