HYDRAsub Hydranautics Submerged Microfiltration Membrane Bioreactor (MBR) Module

(HSM1500-ES, HSMM2400-ES)

Membrane Bio Reactor (MBR) MBR is a hybrid wastewater treatment technology that combines biological treatment by activated sludge and physical treatment by membrane filtration. Compared to conventional activated sludge treatment, MBR and particularly HYDRAsub produces high quality permeate water suitable for RO treatment and reduces the footprint drastically by elimination of sedimentation tank and operation at higher Mixed Liquor Suspended Solids (MLSS).

Membrane Bioreactor

Place your order at AQUAANALYTIC, Dubai.
We will quickly deliver your order to any country.

Key HYDRAsubTM Applications:

Domestic waste water

  • Municipalities
  • Hotels, apartment complexes
  • Grey waters

Industrial waste water

  • Food and Beverage Industry – Beer, Dairy, etc.
  • Automobile Industry
  • Oil Refineries
  • Chemical industry

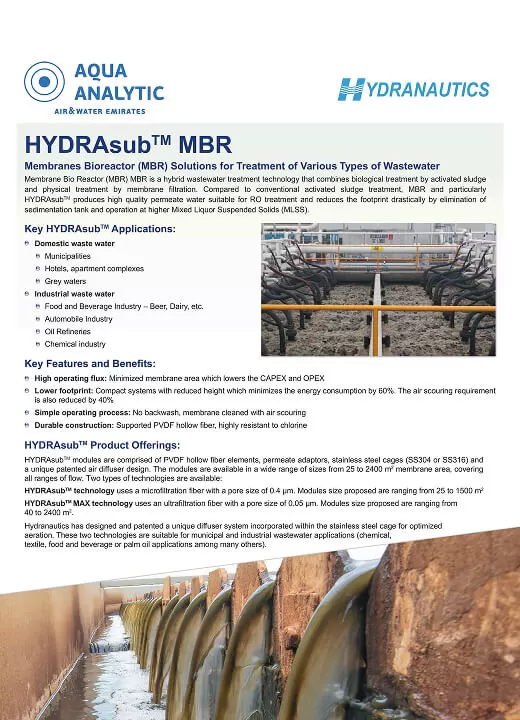

HYDRAsub™ MBR
Membranes Bioreactor (MBR) Solutions for Treatment of Various Types of Wastewater

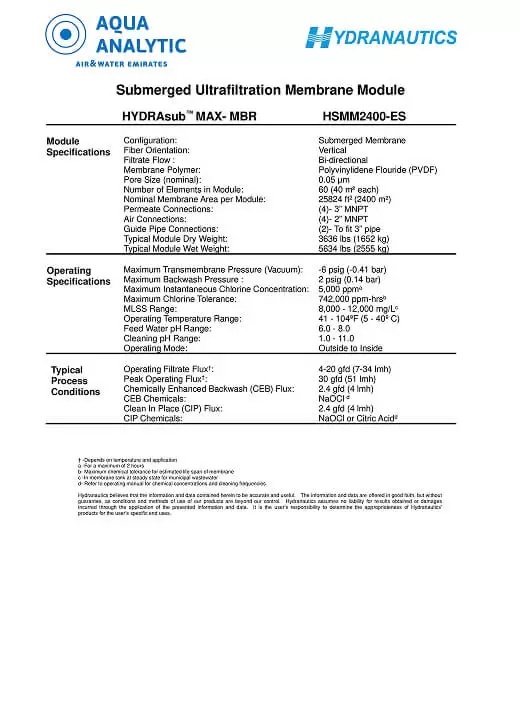

Specification Sheet. Submerged Ultrafiltration Membrane Module

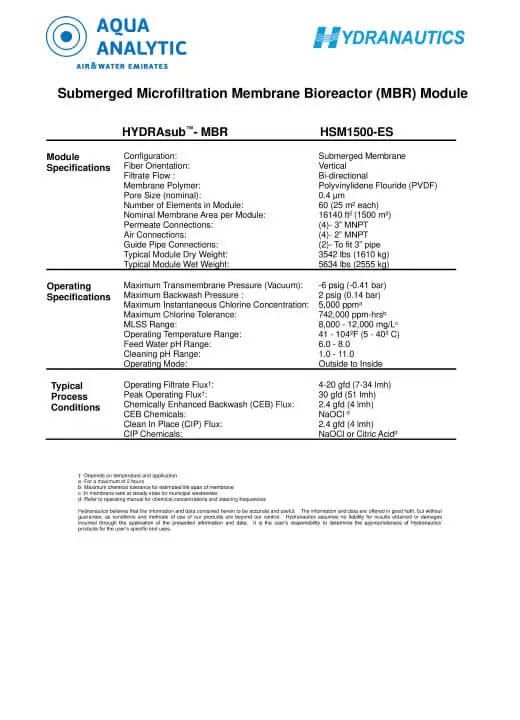

Specification Sheet. Submerged Microfiltration Membrane Bioreactor (MBR) Module

Hydranautics Submerged Microfiltration Membrane Bioreactor (MBR)

Key Features and Benefits:
  • High operating flux: Minimized membrane area which lowers the CAPEX and OPEX
  • Lower footprint: Compact systems with reduced height which minimizes the energy consumption by 60%. The air scouring requirement is also reduced by 40%
  • Simple operating process: No backwash, membrane cleaned with air scouring
  • Durable construction: Supported PVDF hollow fiber, highly resistant to chlorine

HYDRAsub Product Offerings:

HYDRAsub modules are comprised of PVDF hollow fiber elements, permeate adaptors, stainless steel cages (SS304 or SS316) and a unique patented air diffuser design. The modules are available in a wide range of sizes from 25 to 2400 m² membrane area, covering all ranges of flow. Two types of technologies are available:

  • HYDRAsub technology uses a microfiltration fiber with a pore size of 0.4 µm. Modules size proposed are ranging from 25 to 1500 m²
  • HYDRAsub MAX technology uses an ultrafiltration fiber with a pore size of 0.05 µm. Modules size proposed are ranging from 40 to 2400 m².
