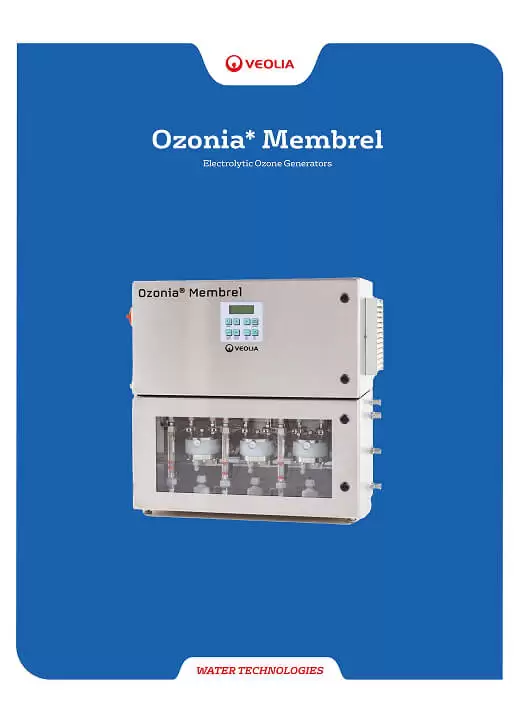

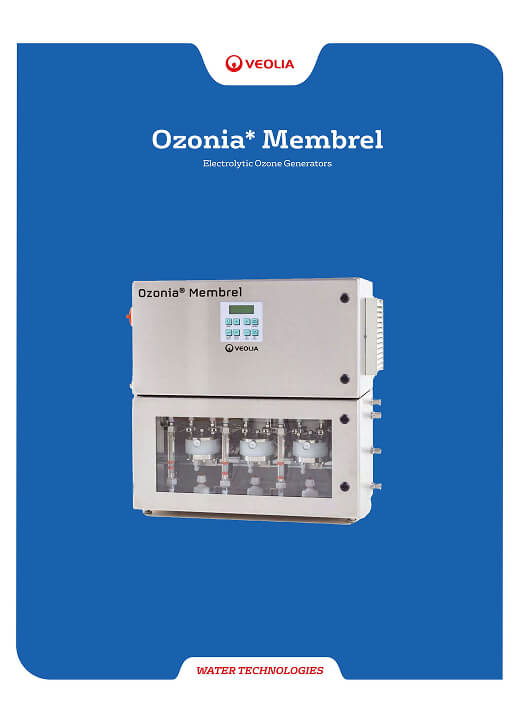

Membrel Electrolytic Ozone Generators

The Membrel MkV uses unique Veolia technology that produces ozone from water instead of gaseous air or oxygen. Adding Membrel Electrolytic ozone generators to an ultrapure water loop improves end-product quality and the overall water system’s performance. Membrel Electrolytic ozone generator is unique because it provides continuous disinfection protection compared to other technologies where microbial activity increases over time. They are also the safest way to disinfect because it eliminates any potentially harmful contamination from outside sources since ozone is produced from the ultrapure water itself.

Features

• Ozone production from 3 g O₃/h to 9 g O₃/h
• Integrated flow control for simple installation
• Easily upgradable by adding ozone production cells
• Easily integrated with small footprint and remote capabilities
• No separate source of oxygen required
• Recognized by all major pharmaceutical standards and complies with FDA, EN, IEC, ISO, CE guidelines

The two primary ways of producing ozone for water treatment are through corona discharge or electrolytically. The Membrel Electrolytic ozone generator uses an electrolytic process to produce ozone from water, making it the most effective method for ozone production in ultrapure water applications, where water purity is critical.

The Membrel MkV is the latest generation of Ozonia electrolytic ozone generators that uses proprietary Membrel modular cell technology and state-of-the-art electronics. The Membrel electrolytic ozone generator utilizes a fundamentally different ozone generation process, using purified water as an oxygen source instead of a gas such as air or oxygen

The Membrel Cell, which functions as both electrolyte and separator between the anode and cathode, is contacted on both sides by activated porous electrodes. The water fed to the anode side of the cell is dissociated at the interface between the anode and cell as a result of the current being applied. The dissociated oxygen is then utilized for ozone generation, all within the Membrel Cell.

Transitioning from production to sanitization is as easy as flipping a switch

• Simply turn the Ultraviolet (UV) — based ozone destructors off and allow ozone to sanitize the entire pure water loop
• In production mode, UV-based ozone destructors are turned ON to stop ozone from going to Points of Use (POUs)
• In sanitization mode, simply turn the UV-based ozone destructors off to allow ozone to sanitize the entire pure water loop
