Vacuum Chlorinator C 2701 Lutz-Jesco (2.0-200.0 kg/h)

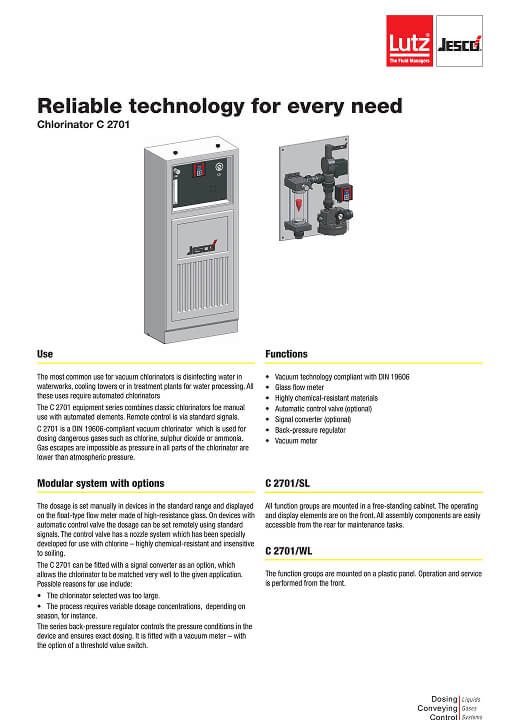

C 2701 chlorinators are built according to a clear modular system. Whether you need a compact device with all functions in a free-standing cabinet or functional modules for individual system design, you always have a reliable vacuum system at your disposal. In the basic version, the dosing quantity is set manually and displayed on a high-strength glass flow meter. Devices with an automatic control valve allow the dosing quantity to be adjusted remotely using standard signals. The control valve has a nozzle system specially designed for use with chlorine gas — highly chemically resistant and insensitive to contamination.

Chlorinator

Place your order at AQUAANALYTIC, Dubai.
We will quickly deliver your order to any country.

The most common application for vacuum chlorinators is the disinfection of water in water pipes, cooling towers, or process water treatment plants. Automatic dosing units are required for all these applications. The C 2526 and C 2701 chlorinators have a clear modular structure. From compact devices with all functions in a single housing to functional assemblies for individual system design, you always have access to a reliable vacuum system.

Features and advantages
  • Up to 200 kg/h (2– 40; 3 — 60; 6 -120; 10 — 200)
  • Flow meter with manual adjustment
  • Highly chemically resistant materials
  • Automatic control valve (optional)
  • Signal converter (optional)
  • Back pressure regulator
  • Vacuum gauge

Vacuum Chlorinator C 2701 Lutz-Jesco (2.0-200.0 kg/h)

Vacuum Chlorinator C 2701 Lutz-Jesco (2.0-200.0 kg/h)

Connection:
  • PVC fitting Ø20 for dosing gaseous chlorine.
  • Gas leakage is impossible because the pressure in all parts of the dosing system is below atmospheric pressure.



Built-in device with the following elements:
  • Vacuum technology in accordance with DIN 19606
  • Glass flow meter
  • Highly chemically resistant materials
  • Automatic control valve [optional]
  • Signal converter [optional]
  • Back pressure regulator
  • Vacuum gauge
