Water treatment by electrodeionization method (EDI)

EDI Water treatment

Electrodeionization (EDI) is a highly efficient and cost-effective water treatment technology that has gained widespread acceptance in various industries for producing high-purity water. This paper provides an in-depth technical overview of EDI, including its principles of operation, key components, applications, advantages, and limitations.

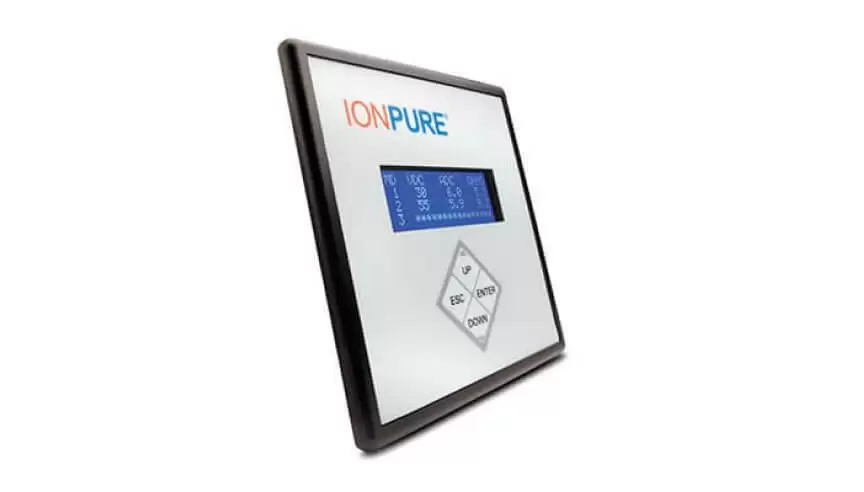

Water treatment by electrodeionization method (EDI)

By understanding the fundamental principles and operational characteristics of EDI systems, engineers and researchers can better assess its suitability for specific water purification requirements.


1. Introduction

Water purity is essential for numerous industrial processes, including power generation, pharmaceutical manufacturing, microelectronics production, and laboratory research. Electrodeionization (EDI) has emerged as a robust solution for producing ultrapure water by combining ion exchange and electrodialysis processes without the need for chemical regeneration. This paper aims to elucidate the technical aspects of EDI water treatment and its significance in various industrial applications.


2. Principles of Operation

EDI operates on the principle of electrochemical ion separation, utilizing ion exchange resins and selective ion-permeable membranes to remove ions from water. The process involves passing feedwater through a series of alternating cation and anion exchange membranes while applying an electric field. Positively charged ions migrate towards the negatively charged electrode (cathode), and negatively charged ions migrate towards the positively charged electrode (anode). The ion-selective membranes allow only specific ions to pass through, resulting in the purification of water as ions are continuously removed from the feed stream.


3. Key Components of EDI Systems

  • Ion Exchange Resins: Charged resin beads within the EDI module facilitate the exchange of ions in the water stream.
  • Ion-Selective Membranes: These semi-permeable membranes allow only specific ions to pass through while blocking others, facilitating the separation of ions from water.
  • Electrodes: An array of electrodes, typically made of stainless steel or other conductive materials, provide the electric field necessary for ion migration.
  • DC Power Supply: Supplies the electrical energy required for the ion migration process.
  • Feedwater and Product Water Channels: Channels within the EDI module facilitate the flow of feedwater and product water while maintaining separation between them.


4. Applications of EDI

  • Power Generation: Boiler feedwater, cooling water, and steam generation processes in power plants require high-purity water to prevent corrosion and scaling, where EDI ensures consistent water quality.
  • Microelectronics Manufacturing: Semiconductor fabrication processes demand ultrapure water to minimize defects in microchips and wafers, with EDI providing reliable purification.
  • Pharmaceutical Production: Water is a critical component in pharmaceutical manufacturing, necessitating stringent purity standards, which EDI systems reliably meet.
  • Laboratory Research: EDI technology is utilized in research laboratories for various analytical and experimental procedures requiring ultrapure water.


5. Advantages of EDI

  • Continuous Operation: EDI systems operate continuously without the need for regeneration cycles, ensuring a constant supply of high-purity water.
  • Chemical-Free: Unlike traditional ion exchange processes, EDI eliminates the need for chemical regeneration, reducing operational costs and environmental impact.
  • High Efficiency: EDI systems offer high removal efficiencies for a wide range of ions, resulting in consistently pure water quality.
  • Compact Design: EDI modules have a relatively small footprint, making them suitable for installations where space is limited.


6. Limitations of EDI

  • Feedwater Quality: EDI performance may be affected by variations in feedwater quality, requiring pre-treatment to remove particulates and organic matter.
  • Electricity Consumption: EDI systems require electricity to operate, which can contribute to operational costs.
  • Maintenance Requirements: While EDI systems have lower maintenance needs compared to other water treatment technologies, periodic monitoring and membrane replacement may be necessary to maintain performance.


7. Conclusion

Electrodeionization (EDI) has revolutionized water treatment by offering a sustainable, chemical-free solution for producing ultrapure water in various industrial applications. With its continuous operation, high efficiency, and minimal environmental impact, EDI has become the preferred choice for businesses seeking reliable water purification solutions. By understanding the technical principles and operational considerations of EDI systems, engineers and researchers can leverage this technology to meet their specific water treatment needs effectively.
