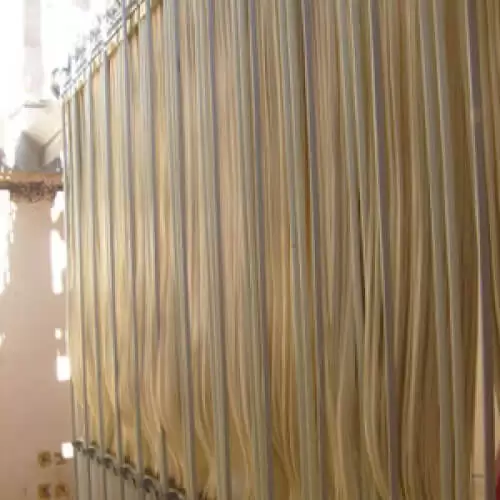

Membrane Bioreactor (MBR) Systems
Unique, robust system that minimizes scouring air flow, footprint and maintenance. MBR system employs an advanced wastewater treatment process that combines activated sludge treatment with membrane filtration resulting in superior effluent quality at a reduced life-cycle cost. The system delivers a stable membrane environment, operational flexibility and reduced maintenance requirements resulting in significant cost savings.
Benefits
- High-quality effluent
- Drastically reduced system footprint
- Fewer process steps
- Eliminates sludge settleability issues
- Modular expansion capacity
- Low energy
Advantages
- Flexible modular rack design — fits in most tank arrangements
- Pulsed, plug flow aeration for channeling & solids build up prevention
- Dedicated, focused air scour delivered to each membrane module
- Pulsed air scour with continuous flow to each tank
- Market leading low energy consumption. Reduces aeration by up to 50% or <0.08 kWh/m³.
- Reduction of operation & maintenance costs with no moving parts in the aeration process
- Easy to handle modules and racks
Dissolved Air Flotation DAF
DAF systems are designed to remove total suspended solids (TSS), biochemical oxygen demand (BOD), and oils and greases (O&G) from a wastewater stream. Contaminants are removed using a dissolved air-in-water solution produced by injecting air under pressure into a recycle stream of clarified DAF effluent. This recycle stream is then combined and mixed with incoming wastewater in an internal contact chamber where the dissolved air comes out of the solution in the form of micron-sized bubbles that attach to the contaminants.
Benefits
- Adjustable effluent outlet
- Open Tank DAF — A standard and cost-effective solution
- Tank body made of AISI 304
- Structural support frame AISI 304
- Pipe flocculator with inline mixers
- Air saturation vessel made of AISI 304
- Sludge hopper
- Control cabinet PLC
- Service platform
Advantages
- Recycle-Flow Pressurization
- Improved Air Saturation System
- Efficient DAF Recycle Pump
- Optimized Use of Coagulants and Flocculants
- Compact Design
- Cost-Effective
Disc Filters for tertiary treatment
Disc Filter is a barrier filter designed for tertiary filtration. It captures more solids in a smaller footprint with a 3D stainless steel media design. The panel media is available in multiple micron ratings suitable for a wide range of applications. The filter panel design includes a robust pressure-assisted seal that allows the panel to sustain and operate at a higher head.
Benefits
- Less space needed — small footprint
- Innovative panel design providing more filtration throughput per disc
- Woven optimum tertiary mesh (OTM) filter panel utilizes 316L stainless steel threads with higher porosity
- Modular design — flexible and expandable.
- Trash tolerant filter panel housing
- Reliable retrofit for some existing conventional filters due to matching hydraulic footprint
- Stainless steel tank or stainless steel frame designs
- Easy to maintain — convenient efficient cleaning
Advantages
- More cost effective solution than traditional sand filters.
- Low backwash generation resulting in higher efficiencies.
- Design simplification when compared to competetition, fewer moving parts with no need to oscillate the spray header.
- 316L stainless steel filtration media much more robust than polyester options
- Pressure assisted panel gasket sealing allows for zero leakage around filter panel.
Biological odor control system for removal organic odors
The Odor Control System is an advanced two-stage biological system that provides odor control from point sources. The first stage is a biological reactor in which bacteria oxidize hydrogen sulfide (H₂S) and organic sulfur compounds. The second stage uses activated carbon to remove residual H₂S and organic odors.
Benefits
- FRP Exhaust Fan
- FRP Vessel with Extended Sump
- Inorganic Biological Media (Stage 1)
- Activated Carbon Media (Stage 2)
- Weather Enclosure (Optional)
- Air Distribution System
- Media Irrigation System
- FRP Control Panel
- Nutrient Tank with Nutrient Pump
- FRP Exhaust Stack
Advantages
- Two-Stage Design for Effective H₂S and Organic Odor Removal
- Compact Design with Optional Fan Cover
- ‘Plug & Play’ Installation
- Non-Hazardous Biological Process
- 99+% H₂S Removal Efficiency
Vertical Open Channel UV disinfection system
Vertical open channel units in Stainless Steel or Polypropylene provide safe, chemical-free disinfection for municipal and industrial wastewater disinfection. The 16,000 hour cross-over UV lamp range provides complete pathogen control with market-leading energy efficiency.
Benefits
- The only flood protected wastewater UV disinfection system in the world
- Maximized design versatility — customizable for virtually any channel dimension
- Minimized space requirements for easy integration in complex environments
- Guaranteed 16 000-hour ULTRATHERM lamp lifetime with CFD optimized cross-line lamp arrangement
- Consistent performance through automated ULTRAWIPER quartz sleeve wiping technology
- Available for wall mount installation
- Streamlined maintenance including easy top-compartment access
- Advanced control cabinet providing UV dose, UVT, flow and power level parameters
- Optional environment control equipment — Water level sensors, weir gates and penstocks
Advantages
- Lamp Configuration- Vertical
- Material- Passivated And Pickled 316l, Super Duplex
- Configuration- Modular
- Pressure Rating- Gravitational
- Flowrates- 5 M³/h (22 Gpm) — 24 000 M³/h (150 Mgd)
- Uv Transmission- (uvt%) 20 — 100%
- Lamp Type- Ultratherm™ Low-pressure High Output (lpho)
- Lamp Lifetime- Guaranteed 16 000 Hours
- Integrated Lifting Mechanism- Included
Ozone systems with high capacity
ULTRAQUBE is an energy-efficient, high ozone concentration ozonation technology designed as a scalable concept that allows for customization over time. Ozonators are scalable thanks to an integrated inverter that produces 88 grams of ozone per hour. If demand increases, additional modules can be integrated to meet needs.
Benefits
- Robust design tailored for industrial applications
- Scalable concept for trouble-free customization of ozone demand
- 9-20 wt% ozone concentration
- Full ozone system with value added products
- Robust and compact unit for easy integration in complex environments
- Safe, sustainable, and chemical-free technology
Advantages
- Capacity- 528 G/h — 4224 G/h and more
- Ozone Concentration 140-300 Gr/nm³
- Control Range- 10-100%
- Energy Consumption 8,5 Kw/kg O₃
- Gas Pressure- 1.0-3.0 Barg
- Oxygen Purity >92%
- Oxygen Dew Point ←40°c / ←40°f
- Cooling Water Temp 2-30°c
- Max Cooling Water Pressure 7 Barg
Compact close coupled sewage pump
Due to their individual design according to customer requirements in connection with high stability, these pumps are an important solution for challenging waste water applications. Thanks to maximum reliability, these pumps support faultles operation of sewage pumping units.
Benefits
LOCATION
- Swimming pool pumps
- Ship pumps
- Sewage pumps
- Industrial pumps
MEDIUM
- Water
- Raw sewage
- Long-fiber ingredients
- Acid or alkali (special)
- Brine resistance available
FOCUS
- Compact design
- Ex area (special)
- Stainless steel available
Advantages
IMPELLER
- Radial impeller without cover
- Wastewater impeller open
MOTOR
- Reinforced bearing
EQUIPMENT
- Fibre cutting device
- Variable nozzle positions
- Double mechanical seal available
INSTALLATION
- Horizontal installation
